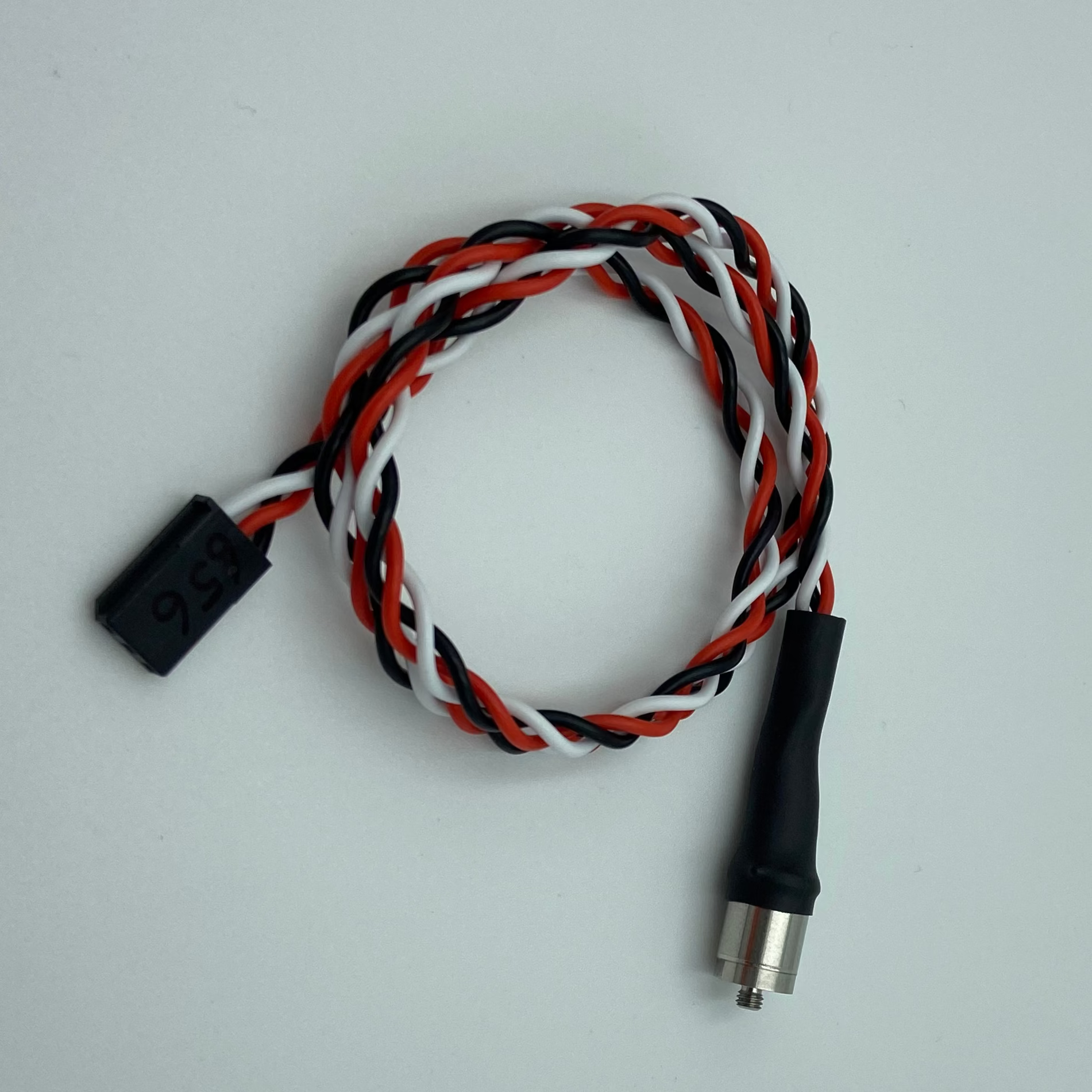

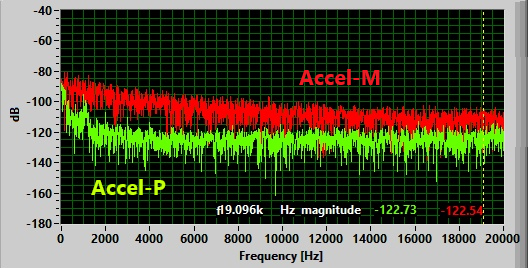

The Accelerometer-P is a high-quality industrial-grade piezoelectric accelerometer. It offers lower noise levels compared to the Accelerometer-M and has a much wider frequency response range. It has internal conditioning electronics to provide a clean stable signal.
It is well suited for the Titan Balance Cradle and screws directly into the sway arms. This is the go-to sensor if you want greater accuracy for vibration measurement and balancing. It is also the perfect match for our TurboScan turbine health monitoring system.
Range (g): ±20
Sensitivity (mV/g): 100
Frequency Response (Hz): 1-8000
Natural Frequency (Hz): 34000
Non-Linearity (%FSO): ±1
Transverse Sensitivity (%): 5
Shock Limit (g): 5000
Residual Noise (g RMS): 0.001
Sensing Element: Piezo-Ceramic
Case Material: Stainless Steel
Mounting: The sensor case has an M3 threaded stud for easy mounting.
Note: Prices for piezoelectric accelerometers have increased due to global supply chain shortages.
