A highly unique turbine offering that has great power and extremely simple set up making it the easiest turbine to install and and use in the industry. With sleek and very stylish external design this turbine range will really turn some heads in the jet flying community.

BACKGROUND

The FTL Vortex turbine was developed to re-define what is possible in an RC jet turbine. The first port of call was to make as many improvements to the installation and fitting of the turbine as possible. To do this we have fully integrated the following elements; the starter motor, the fuel pump, solenoid valve & various sensors.  This vastly reduces the time to set up and run cabling, along with a significant reduction in both the weight of accessories, the turbine itself and the actual time to fit and install everything.

The turbine was then cased in what we believe to be the most attractive outer skin on the market. This turbine not only looks beautiful, but is also a significant step forward to RC turbines in the market featuring several world firsts to market.

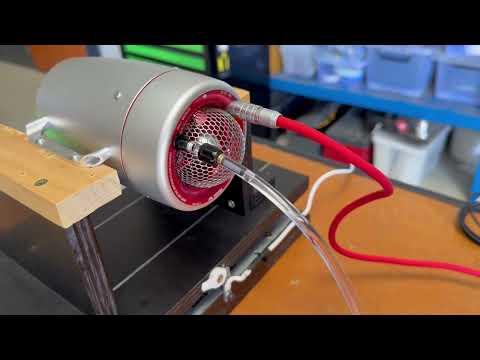

See our YouTube Review here: https://youtu.be/So070ksdqy4?si=oTQEeOLFBdVcBDDa

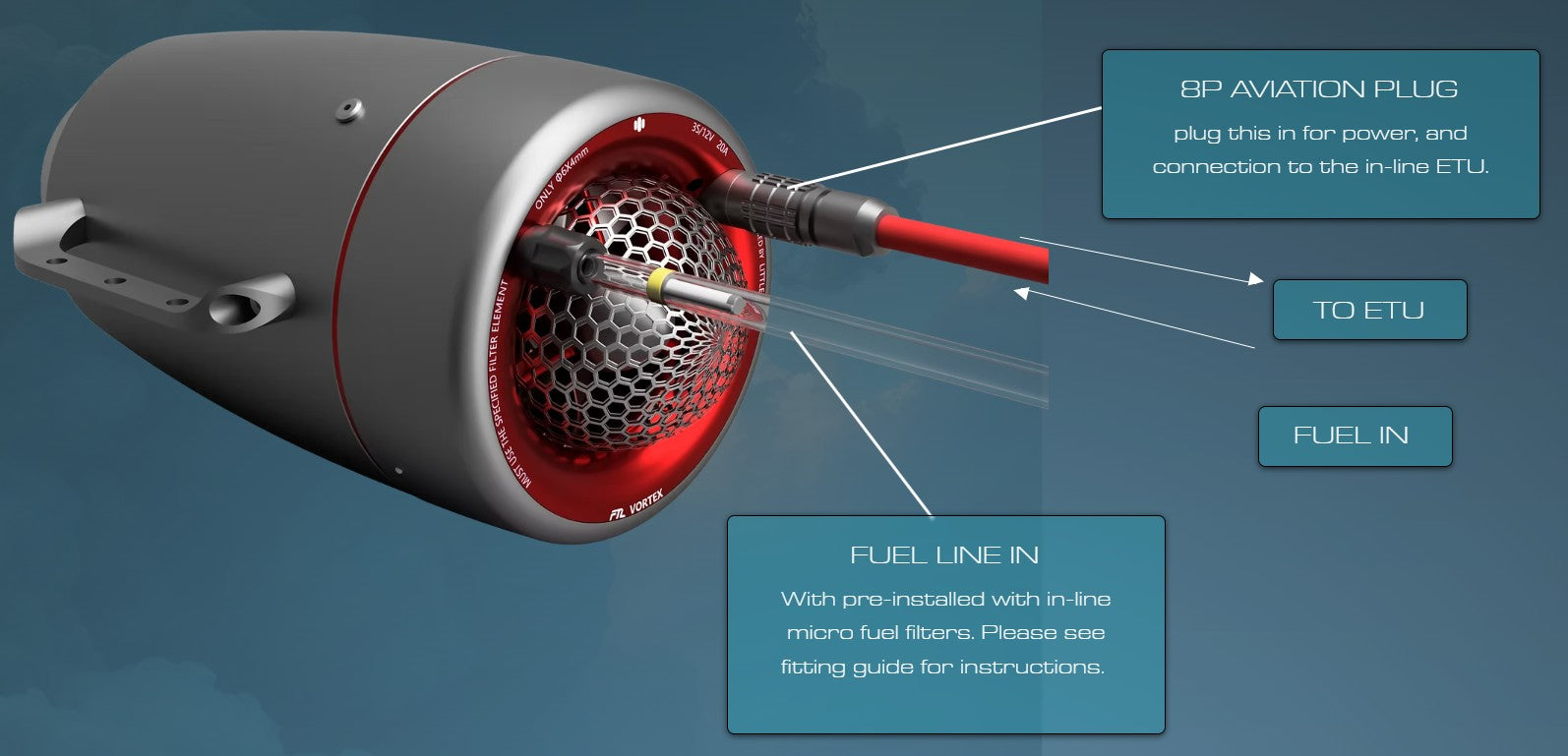

The easiest turbine to fit on the market including many built in features such as;

-Built in fuel pump

-Built in ECU

-Built  in Bubble Sensor

- Simple 2 cable design.

FULL SPECIFICATIONS

Idle speed - 45,000RPM

Max speed - 150,000RPM

Idle Thrust - 5N

Max Thrust - 105N

Exhaust Temp - 695°C

Compression Ratio - 3.7

Air Flow - 0.242 kg/s

Maximum exhaust velocity - 430 m/s

Equivalent power - 22KW

Idle fuel consumption 80ml/min

Maximum fuel consumption: 380 ml/min

Flight Weight - 995g

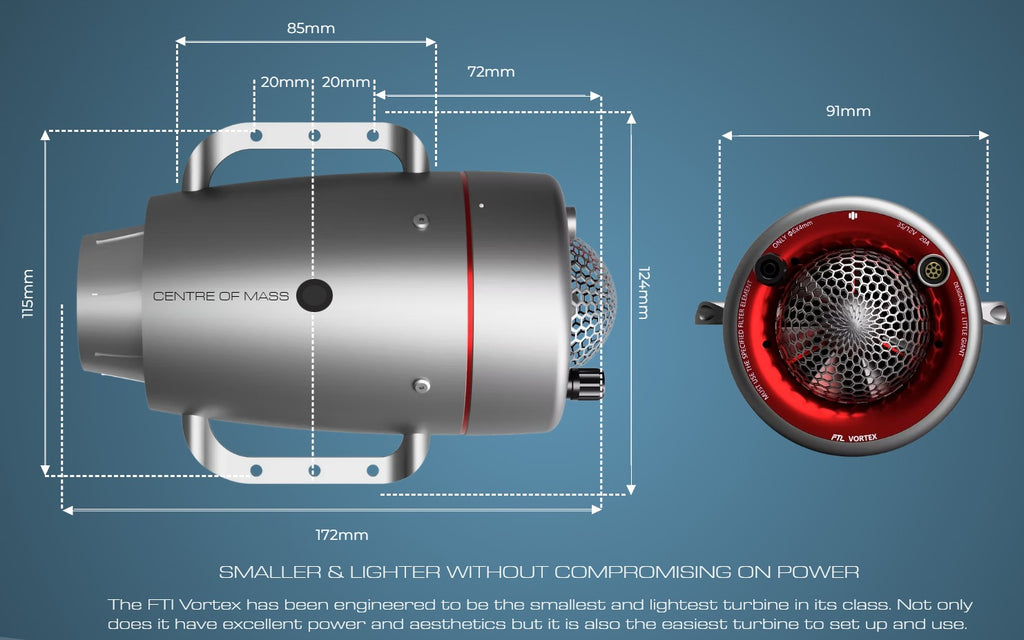

Diameter - 91mm

Length - 171mm

Battery type - 3s lipo

Fuel type - Kerosene / Petroleum

ECU - Built in

Pump - Built in

Starter Motor - Built in

Maintenance cycle - 25 hours. Servicing is conducted by the factory in China.

Package Contents

1 x Vortex M10 Turbine

1X Fuel line

1 x Fuel filter

1x Power cable

1x Display screen

1 x stop valve
