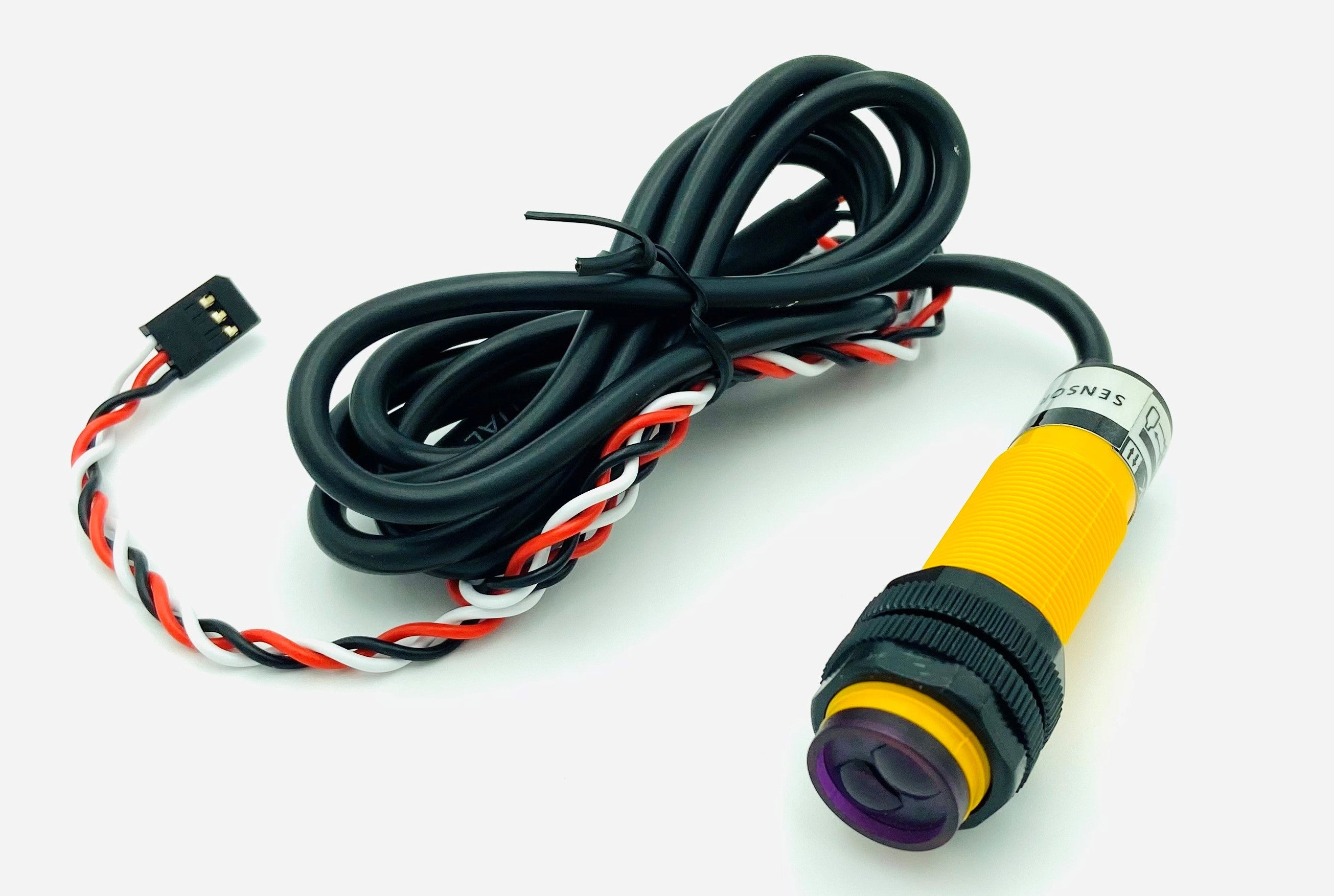

IR Sensor RPM Module (Long Range)
  • IR Sensor RPM Module (Long Range)
  • IR Sensor RPM Module (Long Range)
IR Sensor RPM Module (Long Range)
$45.00

This is the IR sensor that suits the Impulse 2 system. It is typically used for phase measurement and recording RPM. This sensor is used for longer-range detection from 3cm to 20cm away from the rotor.

Note:

  1. IR Sensor is affected by sunlight, so must be used indoors.
  2. 3M Silver Reflective tape can improve signal quality.
  3. Best used on shafts with diameters greater than 6mm.

Specification:

  • Diffuse reflective type
  • Light source: Infrared

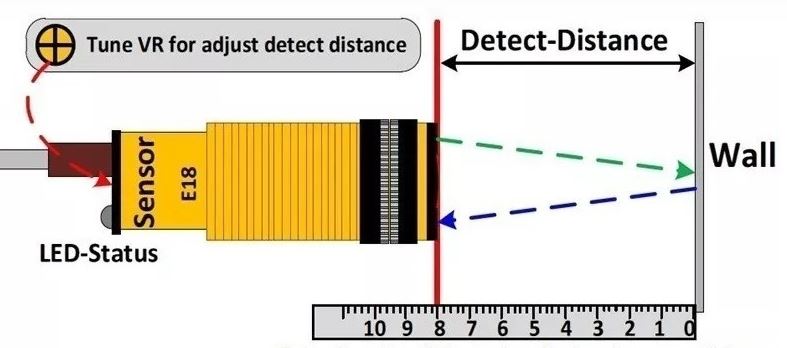

  • Sensing range: 3cm to 20cm (depends on obstacle surface)
  • Input voltage: 5VDC
  • Current consumption: 100mA
  • Dimension: 1.7cm (D) x 4.3cm (L)
  • Sensory distance regulator and output LED indicator
